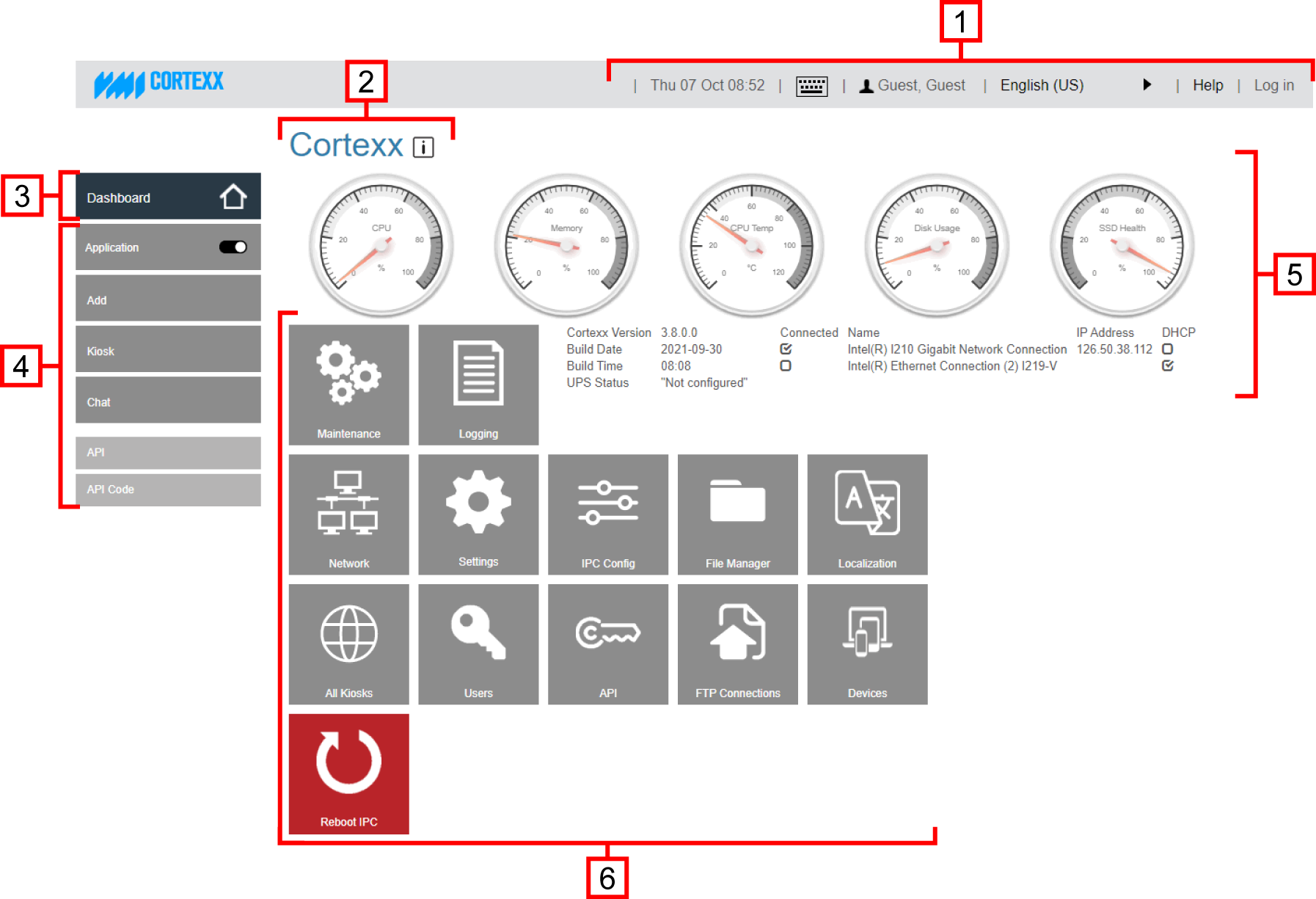

Cortexx

1

Top bar

The date and time of the server.

Click to enable/disable the on‑screen keyboard.

= on‑screen keyboard is disabled.

= on‑screen keyboard is enabled.

For more information, refer to On-screen keyboard.

The logged in user and role. Default is Guest, Guest.

Select the platform language.

For more information, refer to Localization.

Help

Click to open the manual.

Log in / Log out

Click Log in to log in as a different platform user.

Click Log out to log out to the default Guest user.

For the creation and management of user accounts refer to User Management.

2

Cortexx

Click to open the help specific for this page.

3

Dashboard

Click to return to the Cortexx IPC web interface.

4

Applications

Click to open a Cortexx application web interface. When the application is opened, the tile becomes blue.

For more information, refer to Application web interface.

Use the on/off switch on the application tile to quickly enable/disable the application:

= Application is enabled, click to disable the application.

= Application is disabled, click to enable the application.

Note that you must have user rights to change the application settings and initially you must enter the VMI administrator password.

Add

Click to add a new Cortexx application.

For more information, refer to Add a new application.

Sandbox

Click to open the Sandbox page (http://[host]/Sandbox). The Sandbox page shows the source and working folders when CORTEXX is started with the CortexxCoreLauncher.

For more information, refer to Sandbox.

NOTICE: Only applicable when Cortexx is started with the CortexxCoreLauncher.

Kiosk

Click to open the kiosk mode (http://[host]/kiosk).

Local

Click to open the local host (http://localhost).

NOTICE: This link is only available on an IPC.

Chat

Click to open a chat dialog to send messages to other CORTEXX users, For example, if you want to ask other users if it is OK to reboot the IPC or restart the application.

For more information, refer to Chat.

API

Click to open the Cortexx API interactive documentation.

NOTICE: This link only opens in a web browser.

API Code

Click to download C# sample applications.

For more information, refer to API and Webhooks.

5

Status

Gauges

The gauges on the Cortexx IPC web interface indicate:

• The percentage of CPU capacity used.
• The percentage of memory capacity used.
• The actual CPU temperature.
• The amount of disk capacity used in GB.
• The percentage of the rated lifetime used of the Solid‑State Drive (SSD).

NOTICE: Only available on an IPC.

Cortexx Version

The current Cortexx version.

Build Date

The build date of the Cortexx software.

Build Time

The build time of the Cortexx software.

UPS Status

The connection status of the UPS.

NOTICE: Only available on an IPC.

Network Connections

Shows the connection status, adapter name, IP address, and DHCP setting of the available network adapters.

: Indicates that the network adapter is connected.

NOTICE: Only available on an IPC.

6

Tiles

The IPC Maintenance page provides access to a set of available maintenance functions. For example, task scheduler, backup and restore, package installation, etc.

For more information, refer to IPC maintenance.

The Logging page shows all entries in the log.

For more information, refer to Logging.

Configure a kiosk screen on the local host.

NOTICE: Only available on an IPC and not available through a web browser.

Calibrate the touch screen.

NOTICE: Only applicable for IPCs with a touchscreen. Not available through a web browser.

For more information, refer to Touch Calibration.

When the machine has a VMI Vision System (VVS), us this tile to start the VVS user interface (VVSU).

NOTICE: Only available on an IPC and not available through a web browser.

For more information, refer to Start VVSU.

The IPC Network Settings page shows all of your network connections. A network connection is a set of information that enables your computer to connect to the Internet, a network, or another computer. Also firewall setting are accessed through this page.

NOTICE: Only available on an IPC.

For more information, refer to Network settings.

In the IPC Settings page you can configure global computer settings like, web interface theme, computer name, timezone, etc.

NOTICE: Only available on an IPC.

For more information, refer to IPC settings.

The File Manager page is used to manage files and folders in the IPC local storage. Also files and folders can be downloaded from and uploaded to the IPC local storage.

For more information, refer to File manager.

In the IPC Configuration page you can prepare a complete IPC configuration offline without the need of a physical IPC. The prepared IPC configuration settings are saved to an IPC configuration settings file (.vic3). You can then load this file into the IPC and apply the settings.

For more information, refer to IPC Configuration.

The Cultures page is used to add, edit, or delete CORTEXX platform translations. Also, you can import, export, or edit translations related to each language / culture code.

For more information, refer to Localization.

The All Kiosk Clients page gives an overview of all available kiosk clients. If you have multiple applications, all kiosk clients for all applications are shown.

For more information, refer to All kiosk clients.

In the User Management page, the customer can manage users and user roles for the CORTEXX platform. The customer that uses CORTEXX can decide who can access what feature on the CORTEXX IPC.

For more information, refer to User Management.

In the API Access page API access tokens can be generated and managed. An API access token is a credential that a client provides when making API calls. API tokens are supposed to be a secret key that only the client and server know.

For more information, refer to API Access.

In the FTP Connections page FTP connections to external FTP servers can be managed. These FTP connections can be used to automatically store backups and/or automatically install new packages.

For more information, refer to FTP Connections.

In the External Devices page you can manage external devices in the machine configuration. For example, the PLC, other IPCs, VMI PIXXEL cameras, etc.

For more information, refer to External devices.

Close all applications and reboot the CORTEXX IPC.

NOTICE: Only available on an IPC.
